Introduction
Markem Imaje TTO (Thermal Transfer Overprinting) printers are widely used in industrial packaging applications that require high-quality, reliable, and traceable printing.
When a Markem Imaje printer starts showing unclear characters, missing dots, poor barcode quality, or inconsistent printing results, the printhead is usually one of the first components that needs to be inspected and replaced.
Choosing the correct Markem Imaje printhead replacement is essential to maintain stable printing performance, reduce production downtime, and ensure clear product identification.
Markem Imaje thermal printheads are commonly used in industries including:
- Food and beverage packaging
- Pharmaceutical manufacturing
- Cosmetics packaging
- Electronics production
- Automotive components
- Tobacco packaging
These TTO printheads provide reliable printing for:
- Batch numbers
- Expiry dates
- Barcodes
- Product traceability codes
- Anti-counterfeiting information
Hansprintec supplies compatible thermal printheads for Markem Imaje TTO printers, including:
- X30 Series
- X40 Series
- X45 Series
- X60 Series
- X65 Series
- SD5 Series

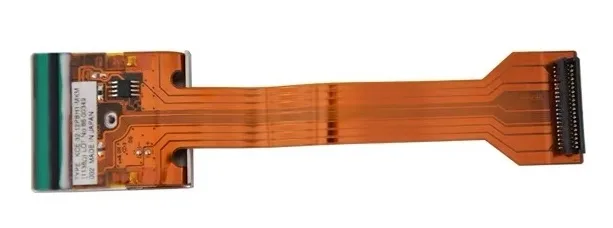

1. Markem Imaje X40 Printhead Replacement
The Markem Imaje X40 is one of the most widely used TTO printing solutions for standard packaging applications.
It is known for stable operation, excellent print quality, and cost-effective maintenance in continuous production environments.
Key Features of Markem Imaje X40 Printhead
- Reliable printing performance
- High-resolution text and barcode printing
- Low maintenance requirements
- Suitable for general packaging applications
The Markem Imaje X40 commonly uses:
- 32mm printheads
- 53mm printheads
depending on the required printing area.
Typical applications include:
- Food packaging
- Beverage packaging
- Pharmaceutical labels
- Daily chemical products
2. Markem Imaje X45 Printhead Replacement
The Markem Imaje X45 is designed for applications requiring higher printing accuracy and improved production stability.
Compared with the X40 series, the X45 provides enhanced performance for more demanding industrial environments.
Advantages of Markem Imaje X45 Printhead
- Higher printing precision
- Improved print consistency
- Better performance on high-speed production lines
- Reliable operation for continuous manufacturing
The Markem Imaje X45 is widely used in:
- Electronics manufacturing
- Automotive components
- Flexible packaging
- Industrial product identification
Some X40 and X45 printheads share compatibility, providing customers with flexible replacement options.
3. Markem Imaje X60 & X65 Printhead Replacement
The Markem Imaje X60 and X65 series are designed for high-speed production lines where printing quality and reliability are critical.
Compared with X40 and X45 systems, X60/X65 printers are commonly used for:
- Faster production speeds
- Larger printing areas
- More demanding coding requirements
Common printing widths include:
- 53mm
- 128mm
Different applications may require different printhead versions, such as:
- Standard printhead
- High-speed printhead
- Wear-resistant printhead
- High-energy printhead
4. Markem Imaje SD5 Printhead Replacement
The Markem Imaje SD5 series is another important TTO printing platform widely used in packaging industries.
SD5 printheads are designed for reliable performance in flexible packaging and high-speed coding applications.
Typical applications include:
- Food production lines
- Flexible packaging
- High-volume coding applications
Common SD5 printhead types include:
- SD5 53mm printhead
- SD5.1 53mm integrated flex printhead
- SD5-128 printhead assembly
5. Markem Imaje Tobacco Printing Printhead
Tobacco packaging applications require printheads with excellent durability and stable performance due to continuous high-speed production requirements.
A commonly used model is:
KHT-107-12PAJ1-MKM Printhead
Features:
- Large printing width
- High durability
- Designed for tobacco packaging production lines
- Suitable for continuous operation
6. Markem Imaje Printhead Part Number Cross Reference
The following table lists common Markem Imaje TTO printhead replacement models, including X-Series and SD5 series printheads.
| Part No. | Description | Replacement / Compatible Model |
|---|---|---|
| ENM10104642 | X-Series Printhead 53mm Integrated Flex | X40/X45 53mm Printhead, Replace ENM10053339 |
| ENM10104643 | X-Series Printhead 32mm Integrated Flex | X40/X45 32mm Printhead, Replace ENM10053340 |
| ENM10104650 | X-Series Printhead 53mm High Speed | X60/X65 Printhead, Replace ENM10058307 |
| ENM10104685 | X-Series Printhead 128mm Assembly | X60/X65 128mm Printhead, Replace ENM10068332 |
| ENM10104648 | X-Series Printhead 53mm Wear Resistant | X60/X65 Printhead, Replace ENM10069724 |
| ENM10104651 | X-Series Printhead 53mm High Energy | X60/X65 Printhead, Replace ENM10069723 |
| ENM10104785 | SD5 Locating Printhead 53mm ASSY Spare | SD5v0/SD5s Printhead, Replace 5825525 |
| ENM10104786 | SD5.1 Printhead 53mm Integrated Flex | SD5.1 Printhead, Replace 10042449 |
| ENM10104787 | SD5 Printhead 53mm ASSY Spare | SD5v0/SD5s Printhead, Replace 34986BA |
| ENM10104749 | X-Series Printhead 53mm Int. Flex 3Pack | X40/X45 53mm Printhead, Replace ENM10061945 |
| ENM10104750 | X-Series Printhead 32mm Int. Flex 3Pack | X40/X45 32mm Printhead, Replace ENM10061946 |
| ENM10104751 | X-Series Printhead 53mm High Speed 3Pack | X60/X65 Printhead, Replace ENM10061947 |
| ENM10104752 | X-Series Printhead 128mm Assembly 3Pack | X60/X65 128mm Printhead, Replace ENM10096367 |
| ENM10104753 | X-Series Printhead 53mm High Energy 3Pack | X60/X65 Printhead, Replace ENM10080937 |
| ENM10104790 | X-Series Cont. 53mm PH Kit + Peel Roller | X40/X45 53mm Printhead, Replace ENM10055976 |
| ENM10104791 | X-Series Int. 53mm PH Kit + P Roller + Anvil | X40/X45 53mm Printhead, Replace ENM10056613 |
| ENM10104641 | X-Series Printhead 53mm Corrected Plus | X40/X45 53mm Printhead, Replace ENM10072369 |
| ENM10104640 | X-Series Printhead 53mm Corrected Minus | X40/X45 53mm Printhead, Replace ENM10072370 |
| ENM10104639 | X-Series Printhead 53mm EDM | X40/X45 53mm Printhead, Replace ENM10072354 |
| ENM10104792 | X-Series Cont. 32mm PH Kit + Peel Roller | X40/X45 32mm Printhead, Replace ENM10055977 |
| ENM10104793 | X-Series Int. 32mm PH Kit + P Roller + Anvil | X40/X45 32mm Printhead, Replace ENM10056614 |
| ENM10104794 | X-Series Cont. HS PH Kit + Peel Roller | X60/X65 Printhead, Replace ENM10059484 |
| ENM10104795 | X-Series Int. HS PH Kit + P Roller + Anvil | X60/X65 Printhead, Replace ENM10059485 |
| ENM10104755 | X-Series Printhead Wear Resistant 3Pack | X60/X65 Printhead, Replace X |
| ENM10104796 | 53mm to 32mm Printhead Configuration Kit | X40/X45 53mm Printhead, Replace ENM10054401 |
| ENM10104797 | 32mm to 53mm Printhead Configuration Kit | X40/X45 53mm Printhead, Replace ENM10054400 |
| ENM10105032 | SD5-128 Printhead Assembly Spare | SD5-128 Printhead, Replace 10029219 |
| ENM10105033 | SD5-128 Printhead Assembly 3Pack | SD5-128 Printhead, Replace X |
| ENM10104788 | SD5.1 Printhead 53mm Integrated Flex 3Pack | SD5.1 Printhead, Replace 10055540 |
| ENM10104789 | SD5 Printhead 53mm ASSY – 3Pack | SD5v0/SD5s Printhead, Replace 10055240 |
| ENM10104926 | SD5 Locating Printhead 53mm ASSY – 3Pack | SD5v0/SD5s Printhead, Replace 10055241 |
More Markem Imaje printhead replacement models are available. Contact Hansprintec for the complete Markem Imaje printhead compatibility list.
7. How to Choose the Correct Markem Imaje Printhead?
Selecting the correct Markem Imaje printhead replacement is important to ensure proper installation and stable printing performance.
The easiest and most accurate way to identify the correct printhead is to provide the original part number.
Method 1: Provide the Original Printhead Part Number (Recommended)
The original Markem Imaje printhead part number is the best reference for replacement selection.
Common examples include:
- ENM10104642
- ENM10104643
- ENM10104650
- ENM10104685
- ENM10104786
If you provide the original part number, Hansprintec can quickly confirm the correct replacement printhead.
Method 2: Provide Printer Model + Printing Width
If the original part number is unavailable, please provide:
Printer Model
Examples:
- Markem Imaje X40
- Markem Imaje X45
- Markem Imaje X60
- Markem Imaje X65
- Markem Imaje SD5
Printing Width
Common Markem Imaje TTO printhead widths include:
- 32mm
- 53mm
- 128mm
Based on the printer model and printing width, we can recommend the suitable replacement printhead.
Method 3: Provide a Photo of the Original Printhead
If you are unsure about the exact model, you can send:
- A photo of the printhead label
- A photo of the installed printhead
- A photo of the printer nameplate
Our technical team can help identify the correct replacement model.
8. Markem Imaje Printhead Installation and Maintenance Tips
Thermal printheads are precision electronic components. Proper installation and maintenance can significantly extend their service life.
Recommended practices:
✔ Ensure proper grounding before installation
✔ Avoid static electricity when handling the printhead
✔ Clean the printhead surface regularly
✔ Use suitable thermal transfer ribbons
✔ Check printer settings after replacement
✔ Avoid excessive pressure between printhead and platen roller
Incorrect installation or improper operation may cause premature printhead failure.
Frequently Asked Questions About Markem Imaje Printheads
How long does a Markem Imaje TTO printhead last?
The service life of a Markem Imaje printhead depends on printing speed, ribbon quality, cleaning frequency, pressure settings, and operating environment.
Regular maintenance and correct installation can help extend printhead lifetime.
Are compatible Markem Imaje printheads reliable?
A high-quality compatible Markem Imaje printhead manufactured according to original specifications can provide stable printing performance and a cost-effective replacement solution.
How do I find the correct Markem Imaje printhead model?
The best way is to provide the original printhead part number.
If the part number is unavailable, please provide the printer model, printing width, or a photo of the original printhead. Our team can help confirm compatibility.
Where can I buy Markem Imaje replacement printheads?
Hansprintec supplies compatible thermal printheads for Markem Imaje X30, X40, X45, X60, X65, and SD5 TTO printers.
Send us your original part number or printer information, and our team will help confirm the correct replacement solution.
Conclusion
Choosing the correct Markem Imaje print head replacement is essential for maintaining printing quality and production efficiency.
- Markem Imaje X40 printheads are suitable for standard packaging applications.
- Markem Imaje X45 printheads are designed for higher accuracy requirements.
- Markem Imaje X60/X65 printheads are ideal for high-speed production environments.
- Markem Imaje SD5 printheads provide reliable solutions for advanced TTO applications.
Hansprintec provides compatible Markem Imaje TTO printheads with professional technical support.
Contact us for Markem printhead price, compatibility confirmation, and replacement recommendations.
