Product Name: Thermal Printhead
Model : X40 X45 SD5 53mm
Category: Markem Printhead
Part Number: ENM10104642
Delivery Time: 1-3 days
Warranty:3 months/30km
The ENM10104642 is the standard 53mm OEM thermal printhead for the Markem-Imaje SmartDate SD5 platform — the most widely installed TTO (Thermal Transfer Overprinting) coder family in flexible film packaging lines worldwide. At 300 DPI resolution and print speeds up to 600 mm/s, this printhead delivers the consistent, regulation-compliant coding that food, pharmaceutical, and FMCG packaging lines depend on for date marking, batch traceability, and brand compliance.
| Parameter | Specification |
|---|---|
| OEM Part Number | ENM10104642 |
| Cross-Reference Numbers | 10042449, ENM10053339, ENM10104794, DKN-53-12PAT1-X40, KCE-53-12PAT1-MKME, KCE-53-12PAT1-X40 |
| Printhead Type | SD5 (with integrated flex ribbon cable) |
| Print Width | 53 mm |
| Print Resolution | 300 DPI (12 dots/mm) |
| Print Technology | Thermal Transfer Overprinting (TTO) |
| Max Print Speed | Up to 600 mm/s |
| Max Throughput | Up to 220 packs/min at 300 DPI |
| Firmware Requirement | Version 32 or newer (for X40/X45) |
| Weight | Approx. 83.6 g |
| Warranty | 3 months |
| Delivery Time | 1–3 business days |
The ENM10104642 is the 53mm SD5-type printhead for the full Markem-Imaje SmartDate X-Series and SD5 platform. Confirmed compatible models:
⚠️ Firmware requirement — check before installing.
For SmartDate X40 and X45 units, this printhead requires firmware version 32 or newer. If your coder is running an earlier firmware version, the printhead may not initialise correctly. Check your current firmware version in the printer’s system settings before ordering. If you are unsure, contact us with your machine serial number and we will advise on compatibility and any firmware update requirements.
⚠️ ENM10104642 vs ENM10104794 — what is the difference?

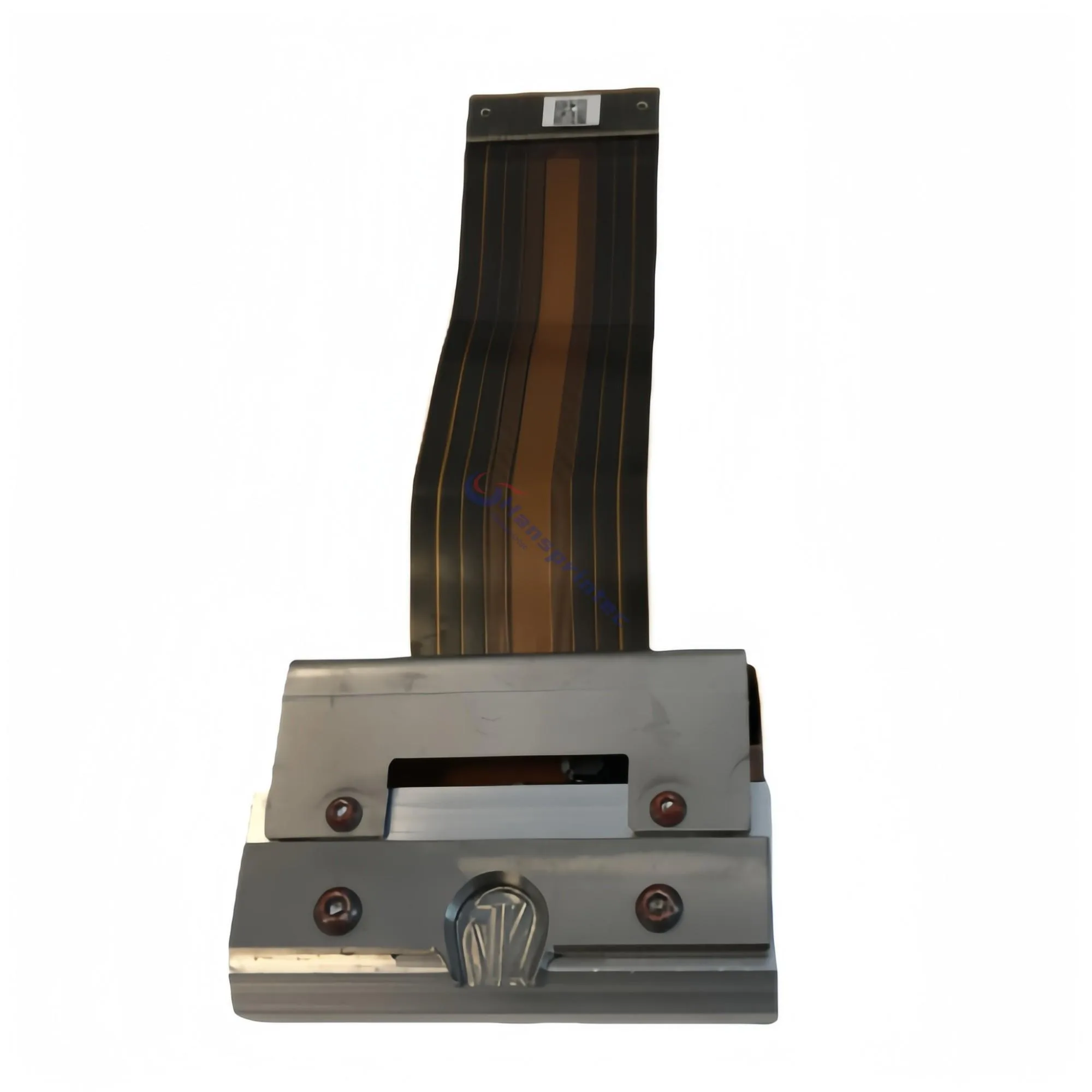

The ENM10104794 is a variant of this printhead supplied without the peel roller. If your SmartDate uses a peel roller mechanism, the standard ENM10104642 (which includes the peel roller) is the correct unit. If you are replacing a unit that did not have a peel roller, the ENM10104794 variant may be appropriate. Contact us if you are unsure which variant applies to your machine configuration.
The SmartDate SD5 platform is the dominant TTO coder in food and pharmaceutical packaging globally, installed on hundreds of thousands of horizontal FFS (form-fill-seal), flow-wrap, and VFFS packaging lines. The ENM10104642 is the 53mm printhead that powers this platform — producing sharp barcodes (Code 128, Data Matrix, QR Code, EAN-13), clear text, logos, and regulatory compliance information directly onto primary flexible packaging film at up to 600 mm/s.

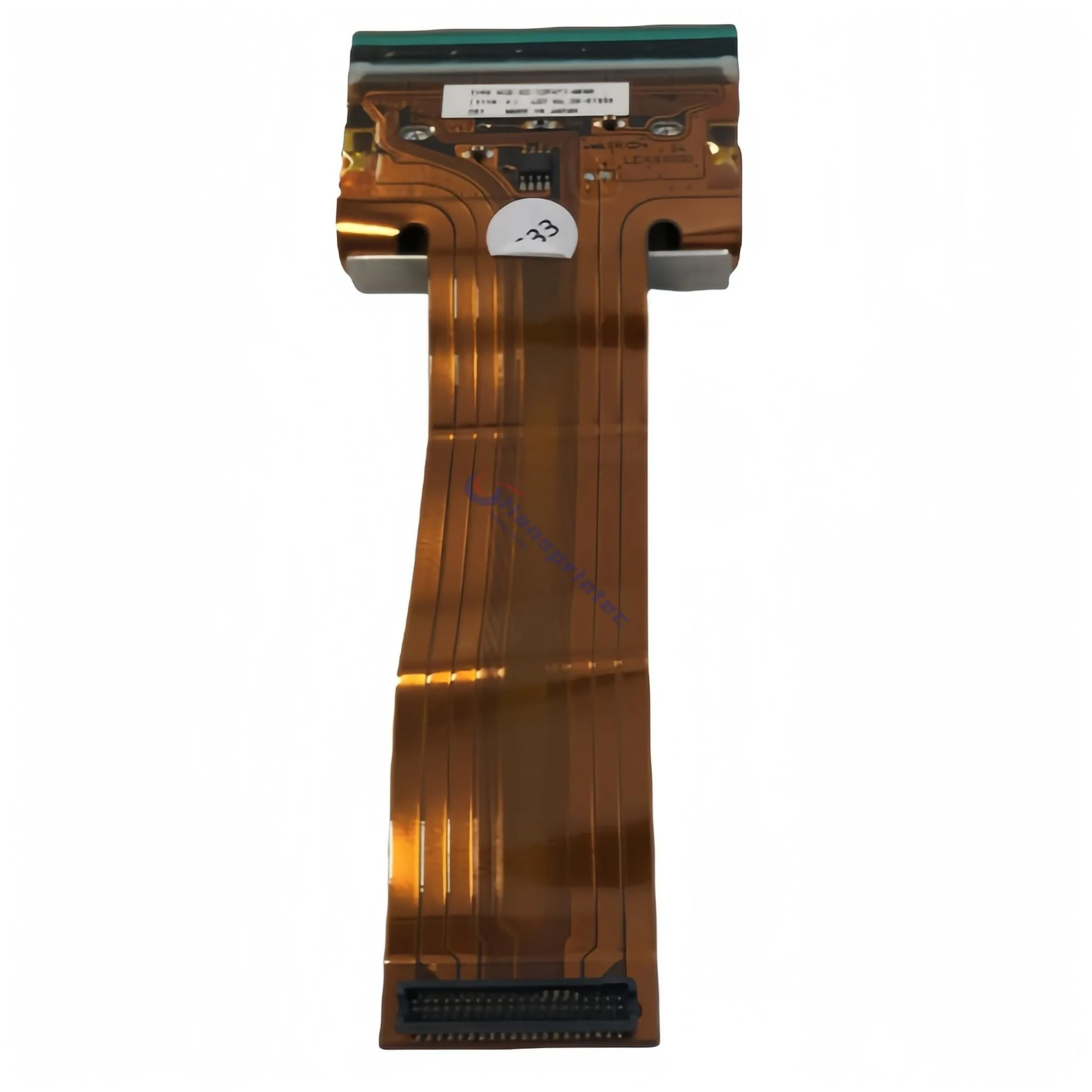

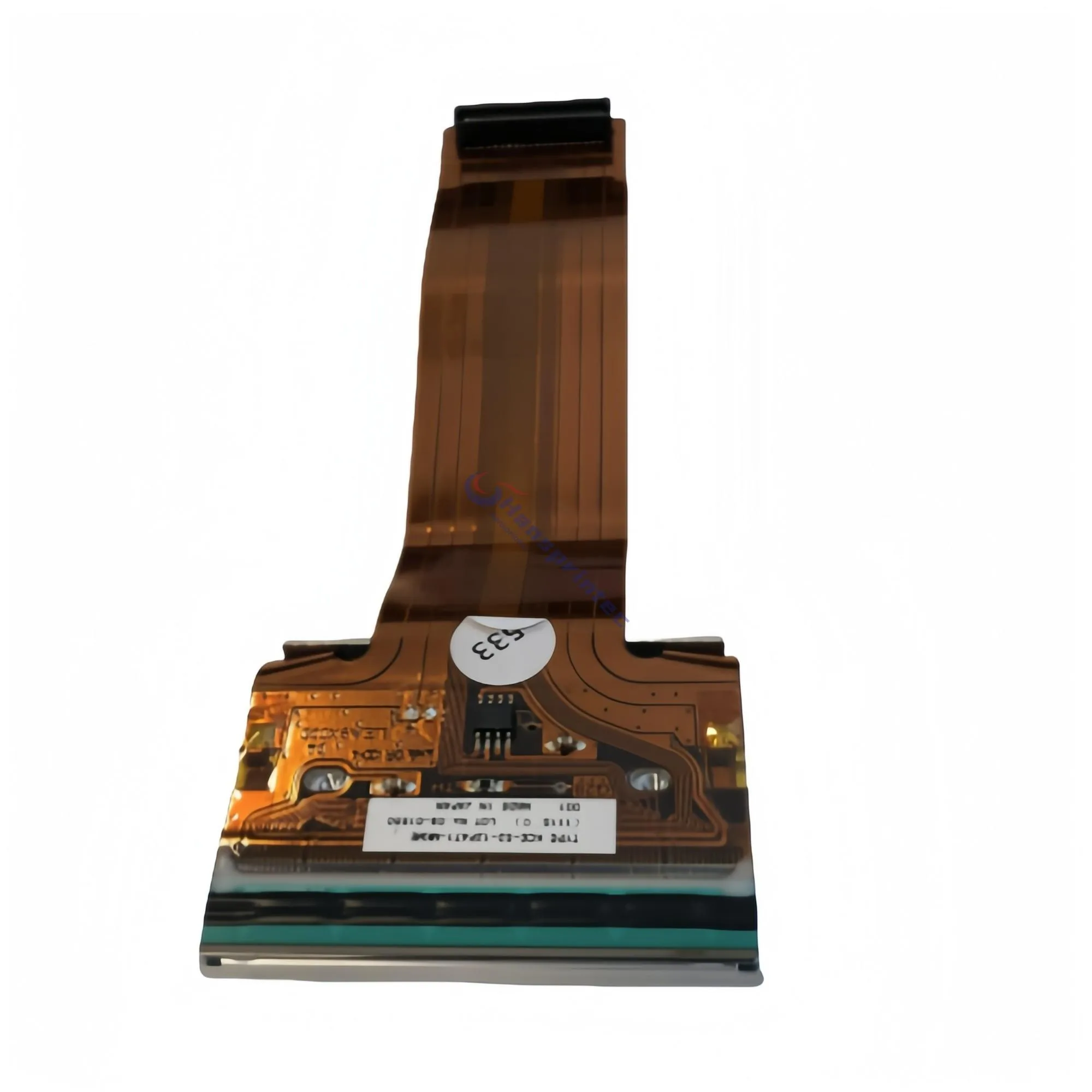

The SD5-type printhead (ENM10104642) features an integrated flex ribbon cable — a design improvement over earlier SmartDate printhead generations that used a separate cable assembly. The integrated cable reduces the number of connection points, simplifies installation, and eliminates a common failure point. Replacement on-line takes approximately 10–15 minutes with no tools required beyond basic access to the coder head.
The SmartDate X45 and X60 are designed for medium to high throughput packaging operations. This printhead supports the full rated speed range — from 30 mm/s on slow intermittent lines up to 600 mm/s on fast continuous motion conveyors — at 300 DPI without dot dropout, smear, or registration error. Using a genuine OEM printhead ensures the thermal energy calibration, dot density, and ribbon advance characteristics remain matched to the coder’s original factory settings.
Every ENM10104642 supplied by Hansprintec is a 100% genuine Markem-Imaje OEM printhead — not a compatible or third-party equivalent. We maintain stable inventory across the full SmartDate printhead range and ship globally with full customs documentation within 1–3 business days of order confirmation.
TTO printheads on high-speed packaging lines engage and release against film thousands of times per shift. These five practices will extend your ENM10104642 service life significantly:
The SmartDate SD5 / X-Series with ENM10104642 printhead is found across:
Typical print content includes:

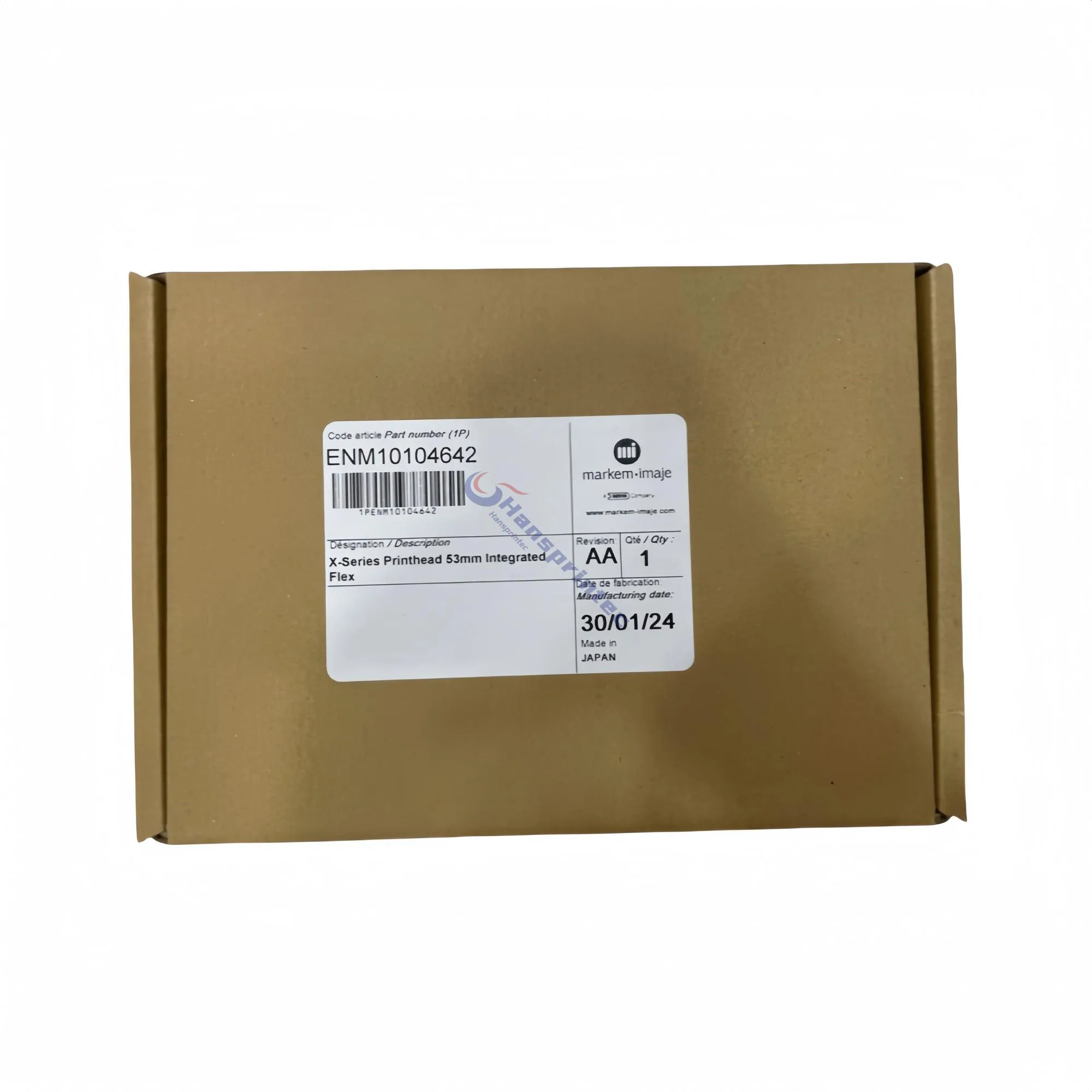

Hansprintec ships the ENM10104642 globally with protective packaging and customs-ready documentation, typically within 1–3 business days of order confirmation. Our team has direct experience with the full Markem-Imaje SmartDate platform — we can verify firmware compatibility, confirm the correct printhead variant (ENM10104642 vs ENM10104794), and advise on ribbon selection for your specific film substrate before you order. Volume pricing is available for packaging line operators, OEM equipment integrators, and maintenance service companies.
Q1: Does ENM10104642 fit the SmartDate X60 and X65 as well as X40/X45?
Yes. The ENM10104642 is confirmed compatible with the SmartDate X40, X45, X60, X65, SD5, and SD5A (5 Advanced). All these models use the same 53mm SD5-type printhead with integrated flex cable. For the X60 and X65, no firmware restriction applies. For X40 and X45, firmware version 32 or newer is required.
Q2: What is the “SD5 type” and why does it matter?
“SD5” refers to the printhead generation used across the Markem-Imaje SmartDate 5 and X-Series platforms. The SD5 printhead features an integrated flex ribbon cable — unlike earlier SmartDate printhead generations that used a separate cable harness. This makes the ENM10104642 incompatible with older SmartDate models (SmartDate 3, SmartDate 4) which require different printhead assemblies.
Q3: What is the difference between ENM10104642 and ENM10104794?
Both are 53mm 300 DPI SD5-type OEM printheads. The ENM10104642 includes the peel roller assembly. The ENM10104794 is supplied without the peel roller — it is the correct choice if your SmartDate configuration does not use a peel roller mechanism. If you are unsure which applies to your machine, contact Hansprintec with your printer serial number for confirmation.
Q4: My SmartDate X40 is running firmware below version 32. Can I still use this printhead?
Not without a firmware update. Firmware version 32 or newer is required for the ENM10104642 to initialise correctly on X40 and X45 platforms. Contact your Markem-Imaje service representative or our team for guidance on firmware update options before ordering.
Q5: What TTO ribbon should I use with the ENM10104642?
The SmartDate X-series requires TTO-formulated ribbons in 55mm width. Markem-Imaje supplies dedicated resin ribbons for this platform. Hansprintec also supplies compatible TTO ribbons suited to different film substrates — contact us with your packaging material (polyester, polypropylene, foil laminate, etc.) and we will recommend the correct ribbon grade.
Q6: Is this a genuine OEM part or a compatible equivalent?
This is a 100% genuine Markem-Imaje OEM printhead bearing part number ENM10104642. Hansprintec does not supply unverified compatible alternatives under OEM descriptions. If you require a compatible option at a different price point, we can advise separately.
Q7: Do you offer volume or contract pricing?
Yes. Hansprintec offers volume pricing for orders of 3 units or more, and supports standing supply agreements for packaging operations with high printhead consumption. Contact us to discuss your requirements.
Q8: How long does delivery take?
Orders ship from Hansprintec within 1–3 business days. International delivery is typically 3–10 business days depending on destination country and customs clearance. Full customs documentation is provided as standard.
