Product Name: Thermal Printhead
Model : TTP-244 Plus TTP-244 Pro T200 TE244
Category：TSC Printhead
Part Number:64-0330003-00LF
Delivery Time: 1-3 days
Warranty:3 months/30km

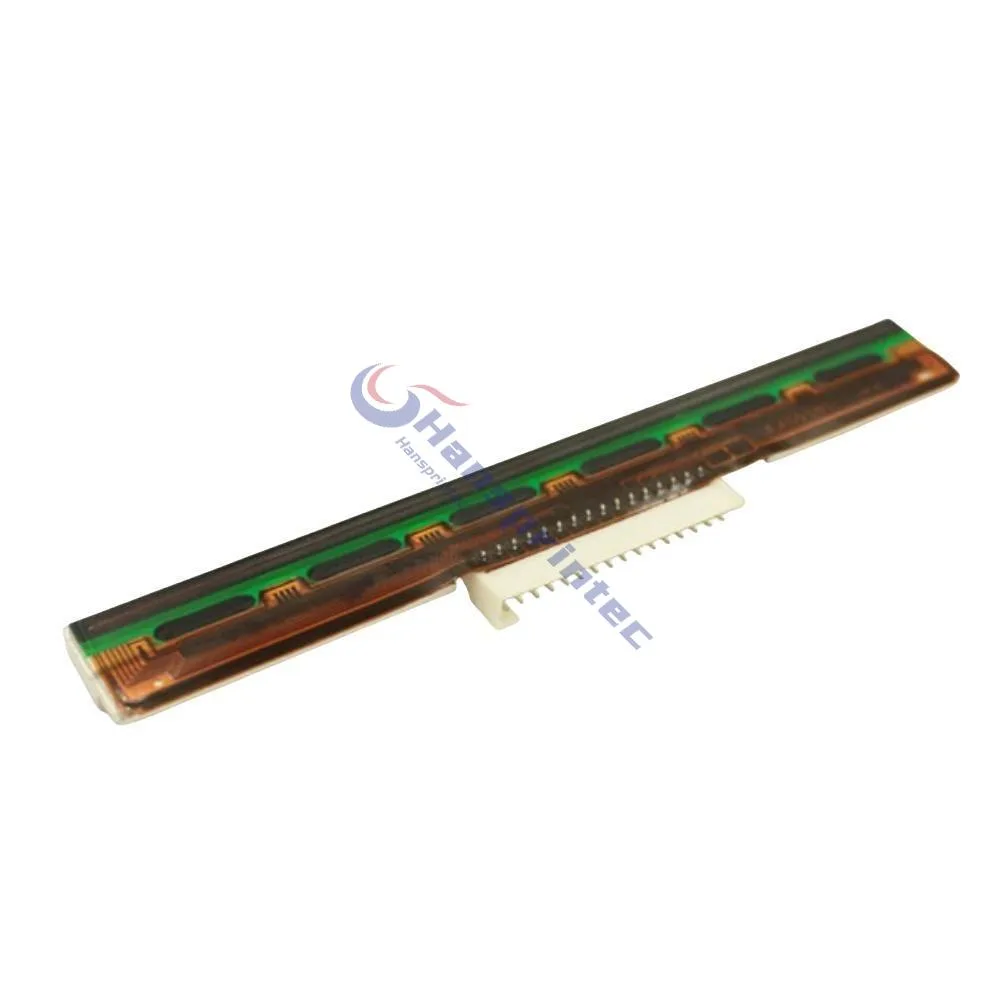

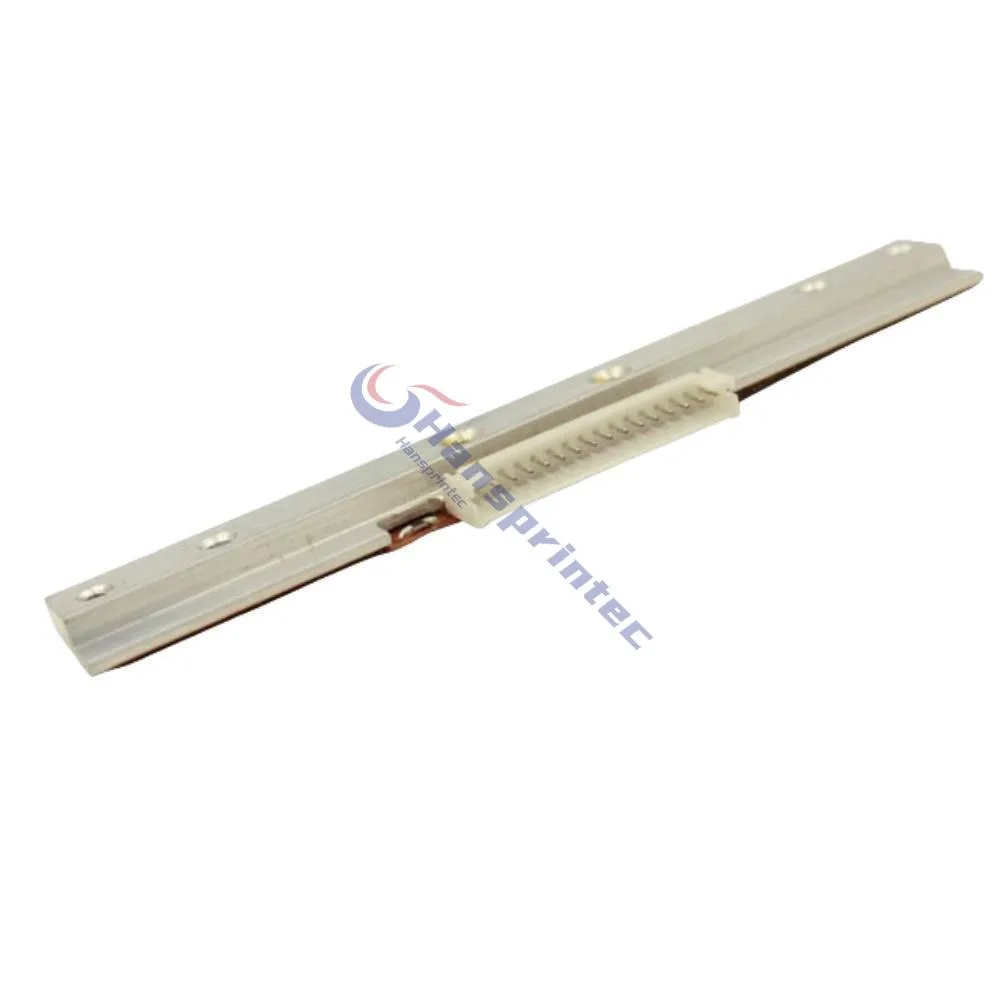

The 64-0330003-00LF is the OEM thermal printhead for the TSC TTP-244 series — one of the most widely deployed desktop barcode label printers in logistics, retail, healthcare, and manufacturing environments worldwide. This is a 203 DPI flat-head (Flat Edge) thermal printhead with a single 16-pin connector interface, designed for both thermal transfer and direct thermal printing at 4-inch print width.
| Parameter | Specification |
|---|---|
| OEM Part Number | 64-0330003-00LF |
| Print Resolution | 203 DPI (8 dots/mm) |
| Print Width | 4 inch (108 mm) |
| Print Technology | Flat Head Thermal Transfer / Direct Thermal |
| Connector Interface | Single 16-pin connector |
| Certification | RoHS, ISO 9001 |
| Warranty | 3 months or 30 km print life |
| Delivery Time | 1–3 business days |
This printhead is compatible with the full TSC TTP-244 product family and several closely related models that share the same 4-inch 203 DPI flat-head print engine:
⚠️ Important before ordering — 16 pins, not 18.
This printhead uses a single 16-pin connector in the centre. Some older TTP-244 variants use an 18-pin dual-connector configuration (part number 64-0180004-00LF or 64-0330001-00LF). Before ordering, check the connector on your existing printhead or look up your printer’s service manual to confirm the correct part number. If you are unsure, contact us with your printer’s model label and we will verify the right unit before you order.
The TTP-244 series uses a flat-head (flat edge) print technology, where the heating elements run in a straight line across the full 4-inch print width. At 203 DPI, each dot is 0.125 mm — sufficient to produce sharp, scannable barcodes (Code 128, QR, Data Matrix, EAN-13) and legible text down to approximately 6-point font size. For the label printing tasks the TTP-244 was built for — shipping labels, inventory tags, retail price labels, patient wristbands — 203 DPI delivers consistent results without the cost premium of 300 DPI.
The 64-0330003-00LF connects via a single 16-pin flat cable connector, identical to the factory-fitted unit. Replacement requires no tools beyond a screwdriver — the printhead mounts on two pivot points, the connector clips on, and the printer is ready to resume production. No firmware update or recalibration is required after fitting an OEM part.
The TSC TTP-244 series is a workhorse printer found in small warehouses, retail stockrooms, hospital admissions desks, and manufacturing lines globally. This printhead is rated for continuous high-volume use — the 30 km print life figure reflects sustained use under normal operating conditions, not intermittent light-duty printing.
This is an original TSC OEM printhead, not a compatible or third-party substitute. It is manufactured to the same specification as the unit originally fitted to your printer, and carries the same 3-month or 30-kilometre print life warranty. RoHS and ISO 9001 certified.
The TTP-244 series is a high-frequency-use printer. A few maintenance habits will significantly extend your printhead’s service life:
We ship globally with protective packaging and full customs documentation, typically within 1–3 business days of order confirmation. The TSC TTP-244 family covers a wide range of printer variants — if you are unsure whether 64-0330003-00LF is the correct part for your specific printer, contact us with your printer model and we will confirm before you order. We also offer volume pricing for resellers, distributors, and maintenance service companies.
Q1: What is the difference between 64-0330003-00LF and 64-0330001-00LF?
Both are 203 DPI printheads for the TSC TTP-244 family, but they use different connector configurations. The 64-0330003-00LF has a single 16-pin connector (fitted to TTP-244 Plus, Pro, TE244, T200, and TTP-244CE). The 64-0330001-00LF uses a different pin configuration for earlier TTP-244 variants. Always check your existing printhead’s connector before ordering.
Q2: Is this compatible with my TSC TTP-244CE / 244U / T200?
Yes — provided your printer uses the single 16-pin connector. The 64-0330003-00LF is confirmed compatible with TTP-244 Plus, TTP-244 Pro, TTP-244CE, TE244, T200, T200 4502, TDP-244, 244U, 245C, 4402, 4502, G210, DA200, TA200, and TA210. If your model is not listed, contact us to verify.
Q3: Is this an original TSC OEM part?
Yes. This is a 100% genuine TSC OEM printhead carrying the official part number 64-0330003-00LF. It is not a compatible or third-party equivalent, and is manufactured to the factory specification for the TTP-244 series.
Q4: How do I install the printhead on a TTP-244?
Open the printer’s top cover and media compartment. Release the two printhead mounting screws or clips (depending on your variant), disconnect the 16-pin flat cable, and remove the old printhead. Seat the new printhead on the same mounting points, reconnect the cable, and close the cover. Run a test label to confirm alignment. No software recalibration is required when replacing with an OEM part.
Q5: How long will the printhead last?
The rated print life is 30 km or 3 months under warranty. In practice, print life is heavily influenced by media type, ribbon selection, print darkness setting, and cleaning frequency. Users who clean the printhead at every roll change and use correctly matched ribbon and media regularly exceed the rated life.
Q6: Do you offer reseller or bulk pricing?
Yes. Contact us for volume pricing on orders of 5 units or more. We supply distributors, IT service companies, and large end-users globally.
Q7: How long does delivery take?
Orders ship within 1–3 business days. International delivery is typically 3–10 business days depending on destination country and customs clearance.
