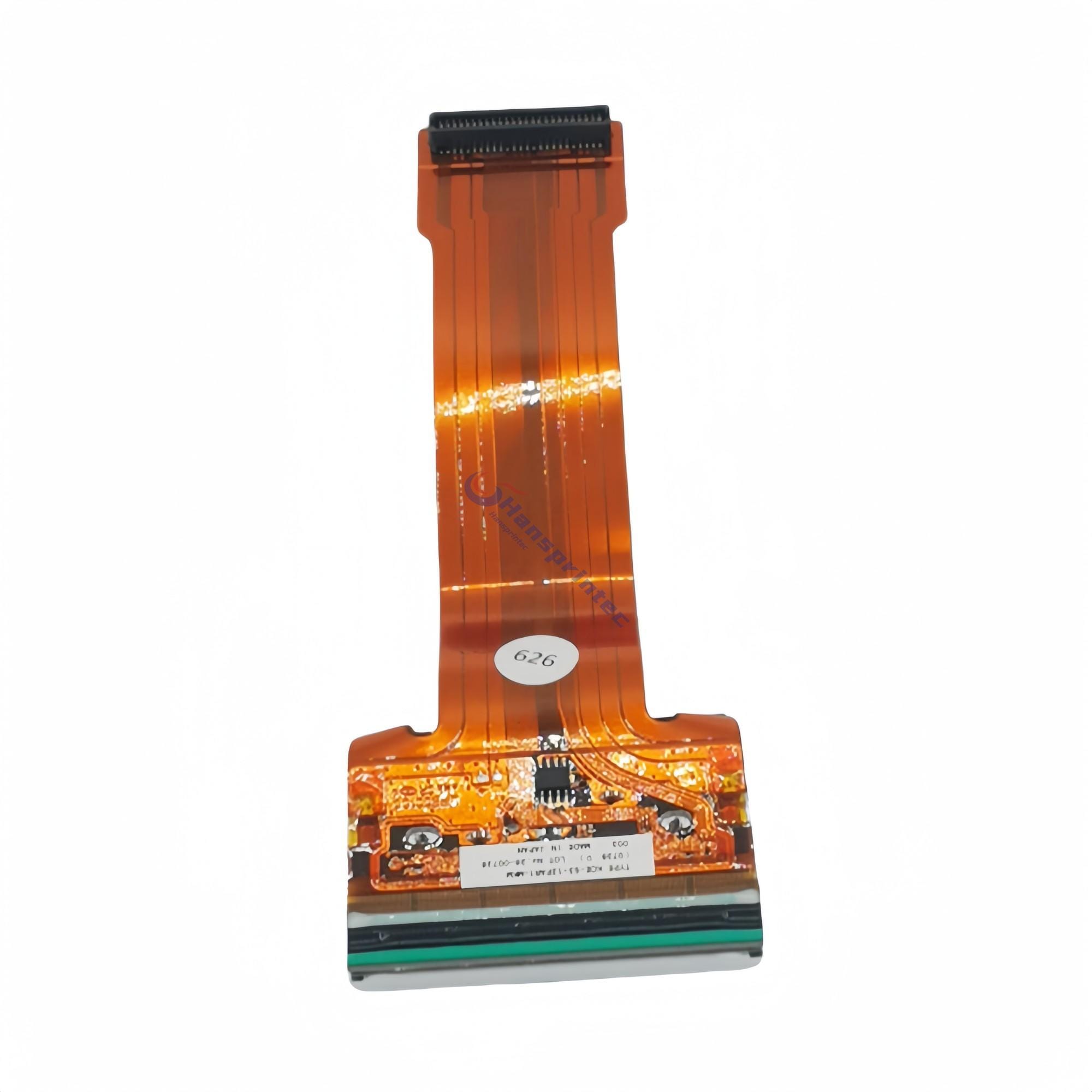

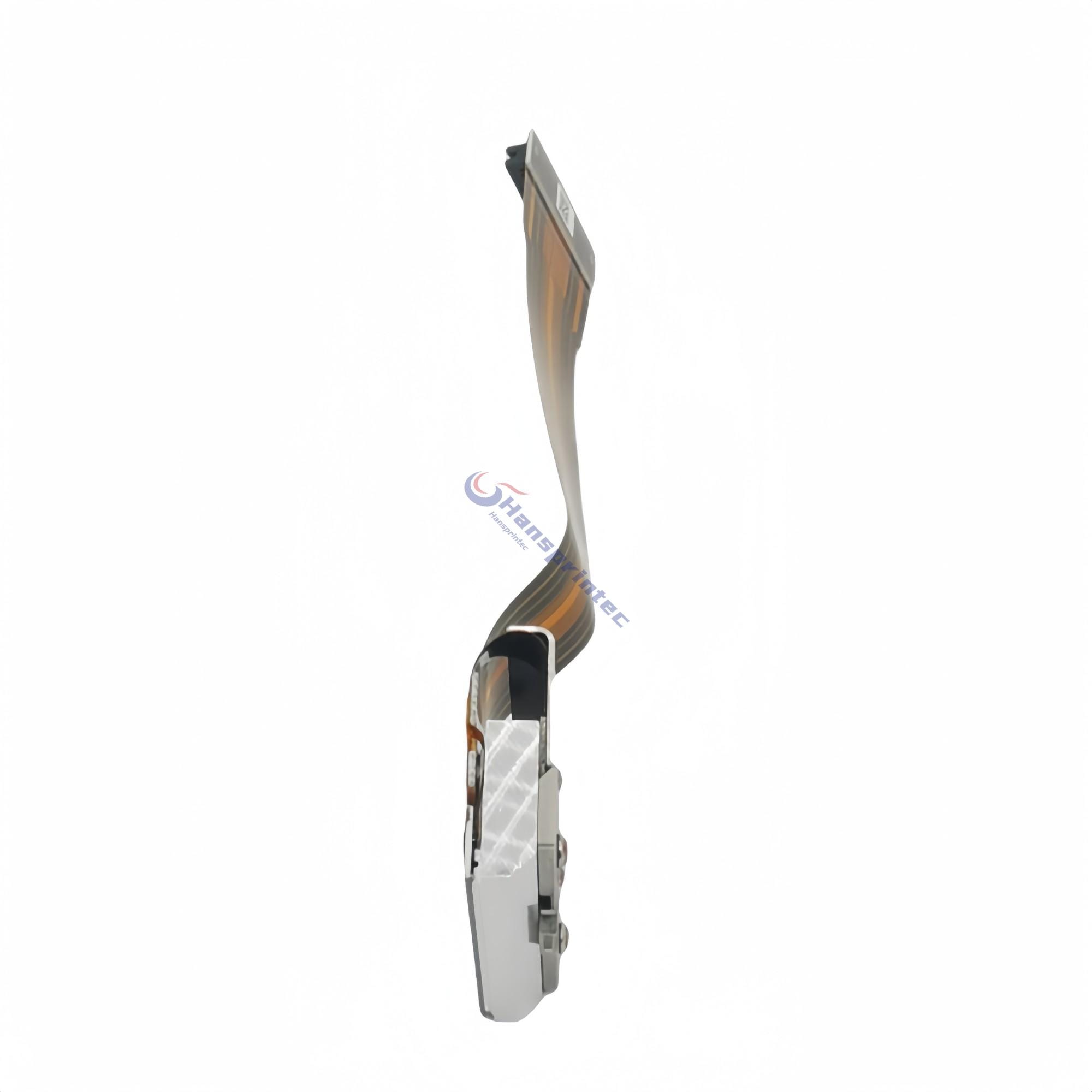

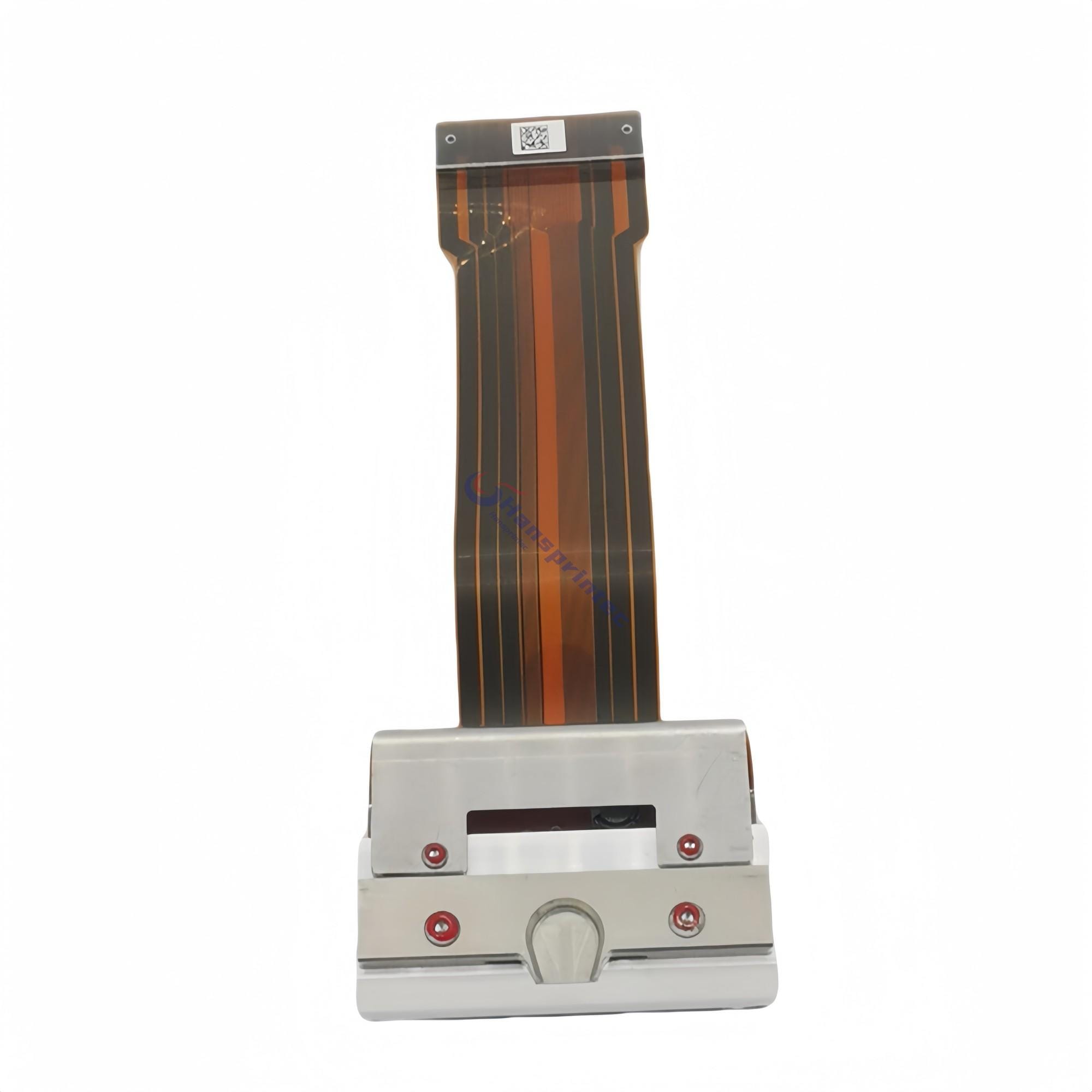

Product Name: Thermal Printhead
Model : X60 X65 53mm
Category: Markem Printhead
Part Number: ENM10104651
Delivery Time: 1-3 days
Warranty:3 months/30km
The ENM10104651 is the genuine OEM High Energy 300 DPI thermal transfer overprinting (TTO) printhead for the Markem Imaje SmartDate X60 and X65 coders, featuring a 53mm print width. Also referenced by the Kyocera part number KCE-53-12PAR1-MKMM, this is a distinct variant from the standard wear-resistant ENM10104648 and the high-speed ENM10104650 — the High Energy designation indicates a printhead element optimised for printing on more demanding or difficult-to-print substrates where higher thermal energy transfer is required to achieve consistent, legible code quality.
Understanding which X60 / X65 printhead variant your coder requires is critical before ordering. The three 53mm printhead options for the SmartDate X60 and X65 are the Standard Wear Resistant (ENM10104648), the High Speed (ENM10104650), and the High Energy (ENM10104651). If you are unsure which variant is installed in your coder, contact us with your printer serial number or current printhead label details and our team will confirm the correct replacement before you order.
OEM Part Number: ENM10104651
Also Known As: KCE-53-12PAR1-MKMM
Printhead Variant: High Energy (53mm)
Compatible Printers: Markem Imaje SmartDate X60, SmartDate X65
Resolution: 300 DPI (12 dots/mm)
Print Width: 53mm
Print Technology: Thermal Transfer Overprinting (TTO)
Max Print Speed: Up to 1000mm/s (X60) / Up to 1800mm/s (X65)

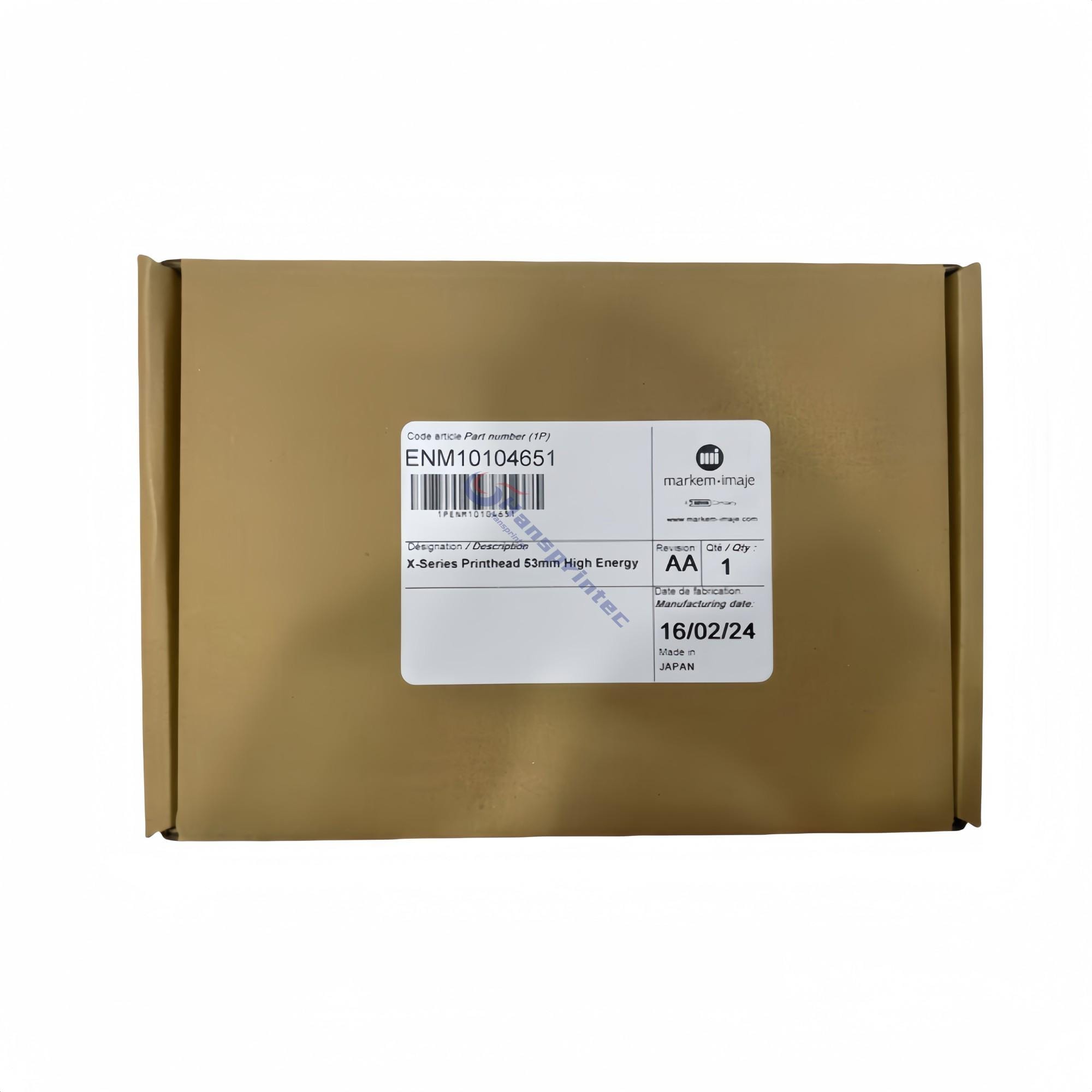

Condition: Brand New, Genuine OEM, Sealed Packaging
Warranty: 3 months (OEM Markem Imaje warranty)
Lead Time: 1–3 Business Days
MOQ: 1 Unit (Bulk Orders Available)
The ENM10104651 High Energy printhead is specifically engineered for SmartDate X60 and X65 applications where the standard or high-speed printhead variants cannot consistently deliver the thermal energy required to produce legible, scan-reliable codes. Typical applications include printing on difficult-to-print flexible packaging films, high-speed metallised substrates, or full resin ribbon combinations where higher thermal output is necessary to achieve adequate ink transfer and code durability. Replacing a worn or incorrect printhead variant with the genuine ENM10104651 restores consistent, high-energy print performance on these demanding substrates.
The ENM10104651 delivers 300 DPI output across a 53mm print width at the SmartDate X65’s maximum print speed of up to 1800mm/s — equivalent to up to 455 packs per minute at full 300 DPI resolution. This makes it one of the highest-speed 53mm TTO printhead configurations available, capable of keeping pace with the fastest flexible packaging lines without sacrificing code clarity or barcode scan reliability.
The ENM10104651 is a genuine Markem Imaje OEM printhead manufactured by Kyocera to the exact thermal element specifications of the SmartDate X60 and X65 High Energy configuration. It arrives in original branded packaging with full OEM warranty, ensuring direct drop-in installation with no calibration, no print settings adjustment, and no risk to your packaging line compliance or uptime.
In food, pharmaceutical, and cosmetics packaging, code legibility and barcode verifiability are regulatory requirements. A degraded or mismatched printhead variant produces codes that fail GS1 grade standards, trigger production line verifier alarms, or result in audit non-conformances. The ENM10104651 ensures your SmartDate X60 or X65 continues to produce audit-ready, scan-reliable codes on the specific substrates and ribbon combinations for which the High Energy variant was specified.
The Markem Imaje SmartDate X60 and X65 are available with three different 53mm printhead configurations. Selecting the correct variant for your application is essential for consistent print quality and maximum printhead service life.
ENM10104648 – Standard Wear Resistant: For standard production speeds and conventional flexible packaging film with wax-resin ribbons. Optimised for balanced performance and durability across general TTO coding applications.
ENM10104650 – High Speed: For maximum throughput applications where print speed is the primary requirement. Optimised for the highest line speeds with standard ribbon and substrate combinations.
ENM10104651 – High Energy (this product): For difficult-to-print substrates and full resin ribbon combinations where higher thermal output is required to achieve consistent ink transfer, code durability, and barcode scan reliability.
If you are unsure which variant is correct for your SmartDate X60 or X65 configuration, contact us with your printer serial number or the part number printed on your current installed printhead and our team will confirm the correct replacement before you order.
Food and Beverage – The SmartDate X60 and X65 are industry-standard TTO coders for high-speed flexible packaging lines in bakery, dairy, snack, ready-meal, and beverage production. The ENM10104651 High Energy printhead is particularly relevant where difficult-to-print packaging films or metallised substrates are used, and where standard printhead variants have failed to produce consistent code quality across all label positions.
Pharmaceuticals – Pharmaceutical manufacturers coding on blister foil, sachets, and specialist flexible packaging requiring full resin ribbon combinations rely on the High Energy printhead variant to achieve the code permanence and barcode verifiability required for GS1 and serialisation compliance.
Cosmetics and Personal Care – Cosmetics and personal care brands printing on foil pouches, laminate films, and specialist packaging substrates use the ENM10104651 where standard TTO printhead variants cannot consistently deliver the required code quality on these challenging surfaces.
Logistics and Contract Packaging – Contract packagers operating SmartDate X60 and X65 coders across diverse product lines and packaging substrates maintain ENM10104651 High Energy printheads as part of their maintenance stock to address applications where standard printhead variants are insufficient.
Replace the ENM10104651 when you notice any of the following on your SmartDate X60 or X65 output:
Faded, inconsistent, or incomplete code output on difficult-to-print substrates despite correct ribbon and temperature settings
White streaks, voids, or missing elements in date codes, barcodes, or text fields across the 53mm print width
Barcode scan failures or GS1 verification grade degradation at the packaging line inspector
Visible physical wear, scratching, or heat element damage on the printhead surface
Print quality alerts or maintenance notifications on the SmartDate X60 or X65 control interface
Regular printhead cleaning after each ribbon cassette change is recommended to extend ENM10104651 service life. When cleaning no longer restores acceptable print quality, replacement is the correct course of action.
What is the difference between ENM10104651 and ENM10104648 / ENM10104650?
All three are 53mm 300 DPI OEM printheads for the Markem Imaje SmartDate X60 and X65, but they are optimised for different applications. ENM10104648 is the Standard Wear Resistant version for general TTO applications. ENM10104650 is the High Speed version for maximum throughput. ENM10104651 is the High Energy version for difficult substrates and full resin ribbon combinations where higher thermal output is required. Installing the wrong variant for your application will result in suboptimal print quality or premature printhead wear.
What is the Kyocera part number for ENM10104651?
The ENM10104651 is manufactured by Kyocera and is also referenced by the part number KCE-53-12PAR1-MKMM. Both references describe the same genuine OEM 53mm High Energy 300 DPI TTO printhead for the SmartDate X60 and X65.
How do I identify which printhead variant is currently installed in my SmartDate X60 or X65?
The part number is printed on a label on the printhead body itself. Open the printhead cassette on your SmartDate X60 or X65 and check the label on the installed printhead for the ENM part number. Contact us with that part number and we will confirm the correct replacement variant before you order.
Is ENM10104651 compatible with the SmartDate X60-128 or X65-128 wide-format configuration?
No. The ENM10104651 is the 53mm printhead. The SmartDate X60-128 and X65-128 wide-format configurations require a 128mm printhead with a different OEM part number. Contact us for the correct 128mm High Energy printhead if needed.
Do you offer bulk pricing or international export shipping?
Yes. We support single unit orders and bulk procurement with full commercial documentation for international export via DHL, FedEx, and UPS. Contact us for volume pricing and lead time confirmation on the ENM10104651.
✅ Specialists in OEM Markem Imaje, Videojet, Domino, Zebra, and SATO printheads
✅ In-stock inventory with 1–3 business day dispatch via DHL, FedEx, and UPS worldwide
✅ Competitive B2B pricing for single units and bulk orders
✅ Expert technical support for printhead variant identification and compatibility confirmation
✅ Trusted by packaging line operators, maintenance teams, and distributors across 50+ countries
Ready to restore full High Energy print performance on your Markem Imaje SmartDate X60 or X65? Contact us today for pricing, stock availability, and international shipping options on the genuine ENM10104651 OEM printhead. Bulk orders and export documentation are available on request. Not sure if ENM10104651 is the correct variant for your coder? Contact us with your printer serial number and we will confirm before you order.
